Features:
Easy to install
Fits for all style motorcycle (4 stroke motorcycle disc-brake front tire)
Special Function:speed, odo, trip, gear position, rpm, icons, fuel, clock etc
Apply to different vehicles with different diameter;
Apply to different displacement vehicles;
Specification:

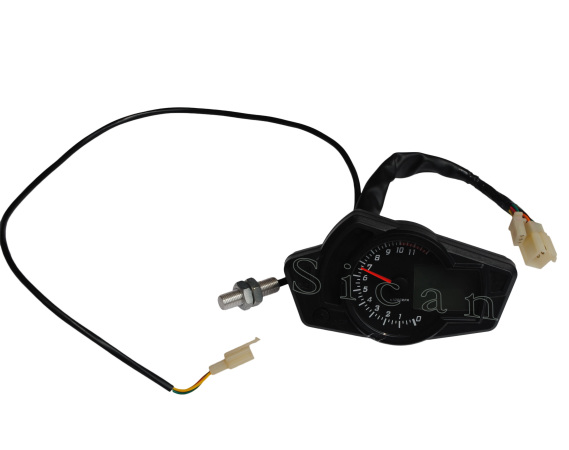

Popular motorcycle meter SS171 has following advantages:
LCD Backlight : Orange
Easy assembly, and provide install manual.
this speedometer send together with a speed sensor length 950mm; (the speedometer is hall effect, universal one)
Working temperature: -30-85C
Working voltage:9-16V
Item dimension: Height (15mm) x Width(85mm) x Length(150mm) x Diameter(100mm)
Testing Certification : UL
Function Table
1. Speed（Max. 199km/h）
2. Odometer（Max 99999.9km)
3. TripA（Max 999.9,can be reset by pressing buttion )
4. Trip B（Max 999.9km,can be reset)
5. Real-time clock(LCD display,12hour clock)
6. Max speed record(LCD display the max speed ever )
7. Max rev record(stepper motor shows the max rev ever )
8. Metric-inch interconversion for speed and rev
9. Over rev alarming(LED flashing when rev exceed 10000r/min).
10. Low voltage alarming ( Red LED light constantly on when voltage is under 9V )
11. Upper beam(Blue LED)
12. Position lamp(Green LED)
13. Neutral gear(green)
14. Left and right blinker(green)
15. Panel, normally on orange LCD.Features:
