Name:Universal Black Mini Rearview Backup Camera + 4.3inch Color LCD Screen Kit
2.Clearly display image on the screen，Let you rest assured to Reversing.
3.Easy to install and Easy to use.
4.the camera is waterproof，please do not worry，you can use it in Rainy day or snowy day.
5.4.inch monitor size:125mm*79mm*15mm
1.Monitor Display:
Name:4.3 " LCD Color Display Monitor
Color:Black
Video Input: AV1/AV2.
Rated Voltage: 9-35V(DC wide voltage)
Display Size: 4.3 inches
Display Devices: TFT-LCD
Resolution: 480 (H) x RGB x 272 (V)
Power Consumption: less than 1W
Working Temperature :-20 degrees C~ 80 degrees
2.Camera Detail
Digital ruler angle: 170°
Image Device : 1/4 "color CMOS
TV System: NTSC/ PAL
Effective pixels: 628**582pixels
Resolution: 420 TV lines
Video Output: 1.0vvp
Electronic Shutter: 1/50-1 / 100,000 Seconds

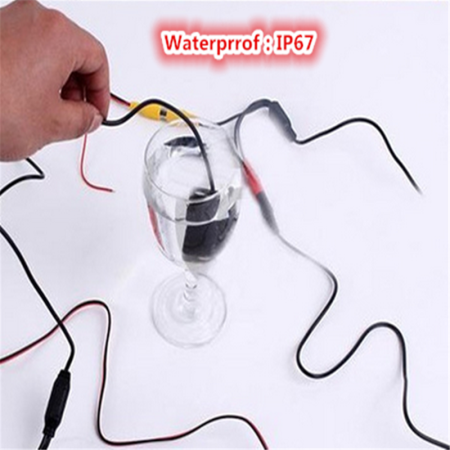

Waterproof Grade: IPX 67
Operating temperature: -30 ° C ~ + 85 ° C RH95%
Working Power (DCV): 12v 1A
Minimum illumination:0.3Lux
Color:Black
2.Clearly display image on the screen，Let you rest assured to Reversing.
3.Easy to install and Easy to use.
4.the camera is waterproof，please do not worry，you can use it in Rainy day or snowy day.
5.4.inch monitor size:125mm*79mm*15mm
1.Monitor Display:
Name:4.3 " LCD Color Display Monitor
Color:Black
Video Input: AV1/AV2.
Rated Voltage: 9-35V(DC wide voltage)
Display Size: 4.3 inches
Display Devices: TFT-LCD
Resolution: 480 (H) x RGB x 272 (V)
Power Consumption: less than 1W
Working Temperature :-20 degrees C~ 80 degrees
2.Camera Detail
Digital ruler angle: 170°
Image Device : 1/4 "color CMOS
TV System: NTSC/ PAL
Effective pixels: 628**582pixels
Resolution: 420 TV lines
Video Output: 1.0vvp
Electronic Shutter: 1/50-1 / 100,000 Seconds
Waterproof Grade: IPX 67
Operating temperature: -30 ° C ~ + 85 ° C RH95%
Working Power (DCV): 12v 1A
Minimum illumination:0.3Lux
Color:Black
Packing lnclude:
1*4.3inch Color LCD Display Screen
1 x Car Rear View Camera
2x Power Cable
1*4.3inch Color LCD Display Screen
1 x Car Rear View Camera
2x Power Cable
